1.75mm 3.0mm 3D Printer Filament Extruder Machine With 1 Year Warranty

PLA ABS PA PETG PEEK 3d printer filament extruding machine

Functional Description of our PLA ABS PA PETG PEEK 3d printer filament extruding machine
1. The vacuum loader will help load the raw material into the hopper dryer,which will help reduce labor. Thehopper dryer is with heating and blowing drying system which will help fully dry the raw materials.
2. The whole machine is controlled by on touch screen PLC system. The PLC system will automatically control all other systems according to the data from the roundness laser measuring device. If the roundness tolerance is too big,the system will automatically control the cooling water temperature,extrusion speed and tracting speed.
3. The tractor machine uses soft belt , which will ensure that the filament will not change shape and the storage thread stand is very important for leaving enough time to change the spool.

The composite of 1.75mm 3.0mm 3D Printer Filament Extruding Machine With 1 Year Warranty



Roundness Laser of our PLA ABS PA PETG PEEK 3d printer filament extruding machine
-----The Laser Diameter Guage is a high and new-technological product incorporating optics and electrics together. By adopting the laser scanning method, the instrument can carried out high-speed, high-precision, non-contact type measurement of tubular objects to be measured on the production line. Owing to the non-contact type measuring point, no interference will be introduced to the measured object. Thus this instrument is especially applicable to hot, soft, movable and vibrating measured objects.
-----Measuring Range:0.0500~50mm
-----Tolerance:±3μm
-----Repeatability Error:±1μm
-----Resolution:0. 0001mm
-----Scanning speed:1800times/s
-----Data processor and data preservation:High performance DSP processor is adopted for high-speed and high-precision calculation; large capacity FLASH memory is adopted for convenient data recording.
-----Communication interface:RS232 or RS485 communication interface can be connected with a computer for on-line detection, which can also be used to transimit measured records saved into the computer.
-----The roundness laser will automatically and continuously send the roundness data to the PLC program, the program will then automatically control the cooling water temperature and other systems to control the roundness tolerance.

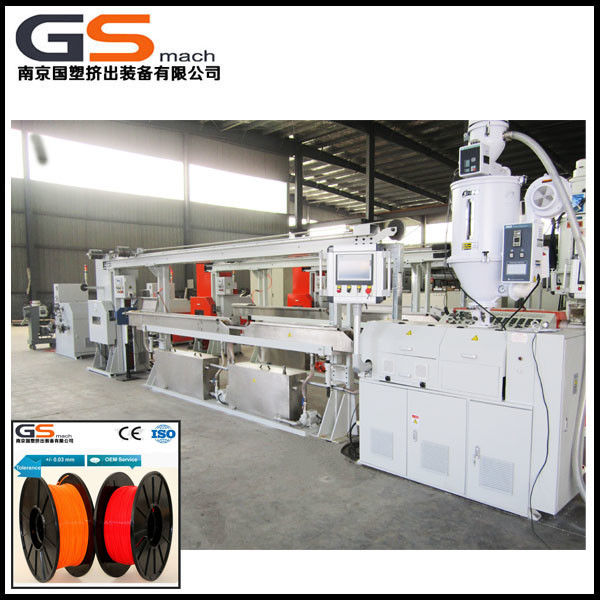

The picture of our PLA ABS PA PETG PEEK 3d printer filament extruding machine:
