Product Details
Place of Origin: Made in Nanjing
Brand Name: GS-mach
Certification: CE ISO9001
Model Number: 500L/1000L
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Cases
Delivery Time: 30 days
Supply Ability: 100 sets/ month
Type: |
Vertical Type |
Process Materical: |
Plastic Material |
Warranty: |
1 Year |
Diameter: |
4580*2240*2470 |
Rotation Speed: |
475/950/130 |
Effective Capacity: |
225/270 |
Control: |
Inverter Control |
Type: |
Vertical Type |
Process Materical: |
Plastic Material |
Warranty: |
1 Year |
Diameter: |
4580*2240*2470 |
Rotation Speed: |
475/950/130 |
Effective Capacity: |
225/270 |
Control: |
Inverter Control |
Advantages:
1. It is used in mixing,stirring,drying,colouring and other processing of all kinds of materials in plastics,rubber,daily chemical and other industries.
2. The technology of sealing mainshaft is given the state patent.
3. The technique of two layers of sealing is adopted in its pot cover.It has self-friction heating and electric heating modes.
4. The discharging mode shave the temperature-automatic control and the manual control.Its blades are made of stainless steel.
5. They passed the test of dynamic balance and static equilibrium.
6. Its electric control section adopts famous control componcnts and temperature-control meters.
Main specifications:
Type | Total Volume(L) | Effetive Volume(L) |
Power of electrical Machinery and heating(KW) |
Principal axis rotary speed | Figure dimension(MM) | Heating mode | Discharge mode |
GS-5A | 5 | 3 | 1.1 | 1400 | 620×300×730 | Self friction | Hand work |
GS-10A | 10 | 7 | 3 | 2000 | 1200×300×830 | ||
GS-25A | 25 | 20 | 5.5 | 1440 | 1200×350×850 | ||
GS-50A | 50 | 35 | 7/11/3 | 750/1500 | 2100×700×1100 |
Electric steam |
Pneumatic |
GS-100A | 100 | 75 | 14/22/6 | 650/1300 | 2100×800×1510 | ||
GS-200A | 200 | 150 | 30/42/9 | 475/950 | 2400×850×1580 | ||
GS-300A | 300 | 225 | 40/67/12 | 475/950 | 2800×1080×1680 | ||
GS-500A | 500 | 375 | 47/67/12 | 430/860 | 3060×1150×1880 | ||
GS-800A | 800 | 600 | 83/110/15 | 370/740 | 3385×1380×2750 | ||
GS-1000A | 1000 | 750 | 110/160/28 | 325/650 | 3460×1140×2900 | Self friction | Pneumatic |
GS-200C | 200 | 150 | 30/42 | 650/1300 | 2545×900×1700 | ||
GS-300C | 300 | 225 | 47/67 | 475/950 | 2800×1080×1680 | ||
GS-500C | 500 | 575 | 83/110 | 500/1000 | 3060×1150×1880 |

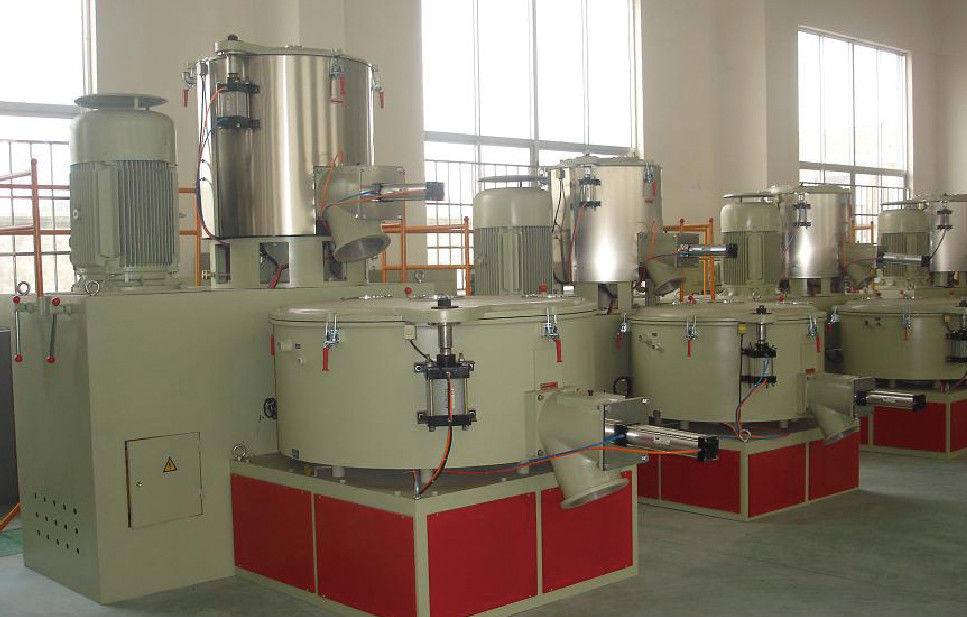

Machine Picture:
