Nanjing GS-mach Extrusion Equipment Co.,Ltd Jacksong@njgsmach.com 86-25-81030382-8:00~17:00
Product Details
Place of Origin: Made in Nanjing
Brand Name: GS-mach
Certification: CE ISO9001
Model Number: GSR90
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Cases
Delivery Time: 30 days
Supply Ability: 100 sets/ month
Process Material: |
Rubber Profiles |
Application: |
Windows And Doors Sealing |
Voltage: |
220V/380V/440V/3P |
Type: |
Rubber Extruder |
L/D: |
20:1 |
Cooling System: |
Mold Temperature Controller |
Process Material: |
Rubber Profiles |
Application: |
Windows And Doors Sealing |
Voltage: |
220V/380V/440V/3P |
Type: |
Rubber Extruder |
L/D: |
20:1 |
Cooling System: |
Mold Temperature Controller |

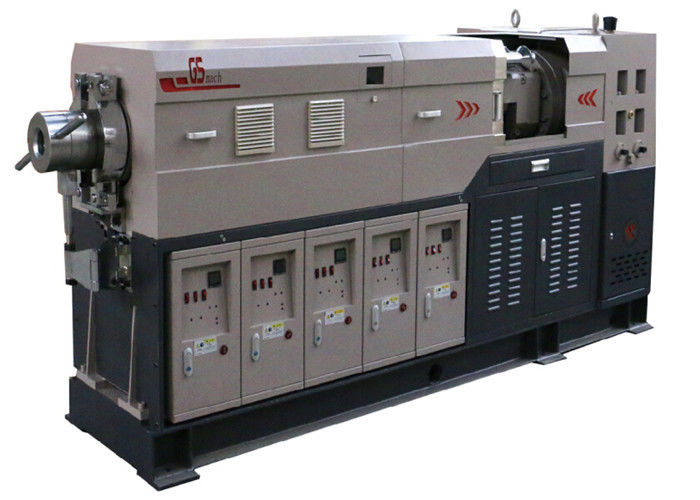

Cold-feeding Vacuumed Rubber Extrusion Machine Rubber Extruder Machine:
Rubber Extrusion Machine:
Pin type cold feeding extruder machine was first designed and manufactured in the 80s. It soon replaced the cold feeding rubber extrusion machine . Compared with the traditional cold feeding extrusion machine, Pin type cold feeding extrusion machine has the bigger extusion capacity, better extrusion quality, lower energy consumption,lower extrusion temperature and wider usages. it is suitable for different rubber materials etxrusion and it has many advantages like good self-clean ability, convinent material exchanging, stable extrusion and easy to operate. compared with the traditional hot feeding extrusion technology, the pin type cold-feeding extrusion machine dose not need hot keading, so it occupies smaller space,lower investment,less labor but the better extrusion performance. Because of its multi advantages, it occupied the 70% rubber extrusion market and the pin type cold-feeding technology is largely improved. It not only replaces the hot-feeding extrusion machine, but also be widely used in the rubber hot kneading and calandering, like the tire buffer area,Innerliners and the special -section rubber manufacturing.
Rubber Extrusion Model:
Model | GSR-250 | GSR-200 | GSR-150 | GSR-120 | GSR-90 | GSR-75 | GSR-65 |
mmScrew Diameter | 250 | 200 | 150 | 120 | 90 | 75 | 65 |
L/D | 12:1 | 12~18:1 | 14~16:1 | 12~16:1 | 14~16:1 | 12~14:1 | 12~14:1 |
r/min | 26 | 33 | 44 | 55 | 60 | 65 | 65 |
Feeding size | 320×246 | 260×210 | 200×165 | 164×140 | 130×122 | 90X75 | 90X75 |
Pin Lines | 10 | 10~12 | 8~10 | 8~10 | 8 | 8 | 8 |
Pin Qty in one Line | 12 | 10 | 8 | 6 | 6 | 6 | 6 |
Power | 315 | 220~315 | 150~185 | 75~110 | 45~55 | 37~45 | 30~37 |
Temperature Control Section | 7 | 7 | 6 | 5 | 4 | 4 | 3 |
KWTemperature Control Power | 35 | 35 | 30 | 25 | 12 | 12 | 9 |
Capacity | 3000 | 2100-2600 | 1800-2000 | 800-1000 | 300-360 | 130-150 | 100-130 |
Rubber Extrusion Machine Description:
1. The barrel is composed of several zones. the spiral slots is made in the feeding zone of barrel to increase the feeding capacity working together with feeding rolls , different number of pins are fitted which enhance mixing and plastic capacity for extrusion material in the plasticity and extrusion zone,.
2. The screws and barrels are made of high quality alloy steel with nitrogen hardening which makes it more wear-resistant and more corrosion protection.
3. The temperature each zone may be automatically probed and controlled by hot water circulating device with good sensitivity, and can be adjusted according to requirement of process.
4. The extruder is driven by a change frequency motor or D.C motor, which achieve continuous and smooth speed regulation.
5. For adopting of higher efficiency screw and pin-barrel, the extruders have better mixing and plasticating result, higher extrusion capacity, and lower temperature for rubber, the
output of production and the quality of product are raise.
