Product Details
Place of Origin: Made in Nanjing
Brand Name: GS-mach
Certification: CE SGS
Model Number: GSJ-75/180
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden cases or pallets
Delivery Time: 45 days after payment of deposit
Supply Ability: 100 set/ month
Process Material: |
PP PE Filler Masterbatch |
Power: |
37-132 Kw |
Rotate Speed: |
500-600/60-90 |
Type: |
75/180 Two Stage Extruder |
Motor: |
SIEMENS |
Capacity: |
250-400 Kg/h |
Process Material: |
PP PE Filler Masterbatch |
Power: |
37-132 Kw |
Rotate Speed: |
500-600/60-90 |
Type: |
75/180 Two Stage Extruder |
Motor: |
SIEMENS |
Capacity: |
250-400 Kg/h |
Heat Insulation Dampproof Filler Masterbatch Plastic Extruder Machine
Product descriptions:
Main Technical Parameters:
Type | AC65 | AC90 | AC105 | AC115 |
Diameter of screw | Φ65mm | Φ90mm | Φ105mm | Φ115mm |
Length-diameter ratio of screw | 28:1 | 28:1 | 28:1 | 28:1 |
Rotary speed of screw | 30-80 r/min | 20-60 r/min | 20-60 r/min | 20-60 r/min |
Motor power of extruder | 11kw | 15kw | 18.5kw | 22kw |
Production capacity | 20-30kg/h | 30-45kg/h | 40-60kg/h | 50-80kg/h |
Heating power of extruder | 13kw | 15.5kw | 18kw | 23kw |
Diameter of handpiece mouth film | Φ300 | Φ300 | Φ400 | Φ450 |
Max. flatwidth of film blowing | Φ600mm | Φ800mm | Φ1000mm | Φ1200mm |
Power of driving motor | 1/2/2 | 1.5/2.2 | 2.2/3 | 3/4 |
Diameter of pull roll | Φ270mm | Φ270mm | Φ270mm | Φ270mm |
Line speed | 6-30 m/min | 6-30 m/min | 6-30 m/min | 6-30 m/min |
Draft ratio | 1-5 times | 1-5 times | 1-5 times | 1-5 times |
Draft control mode | PLC | PLC | PLC | PLC |
Filament thickness | 0.015-0.07 | 0.015-0.07 | 0.015-0.07 | 0.015-0.07 |
Width of heating plate | 700mm | 850mm | 1050mm | 1250mm |
Heating power of the oven | 8kw | 12kw | 15kw | 17kw |
Winding spindle | 12 | 16 | 20 | 24 |
Installing Dimensions | 15200×1800×3150 | 18700×2200×3150 | 20700×2600×3150 | 22000×2800×3350 |
Weight | 2200kg | 2800kg | 3300kg | 3800kg |
After-sale service & Technology support:
Pre-sales services
* Any concerns of our machine by email/phone will be replied ASAP within 24 hours
* Inquiry and consulting support
* Sample testing support
* View our factory
After-sales service
* Traning how to install the machine ,tranning how to use the machine
* Engineers are avaiable to service machinery overseas
* One year guarantee for the machine expect the spare part ,we can supply lifelong technology service to slove any problem form you .
Contact
Nanjing GS-mach Extrusion Equipment Co.,Ltd
No.12 Shanghu Industrial Park,Jiangning Street, Jiangning District,Nanjing China
Mobile Phone: +86 18851021602
Tel: 86-25-81030382-8:00~17:00
Fax: 86-25-52790852
Email: extruder5@njgsmach.com
Web: http://www.plasticpelletextruder.com

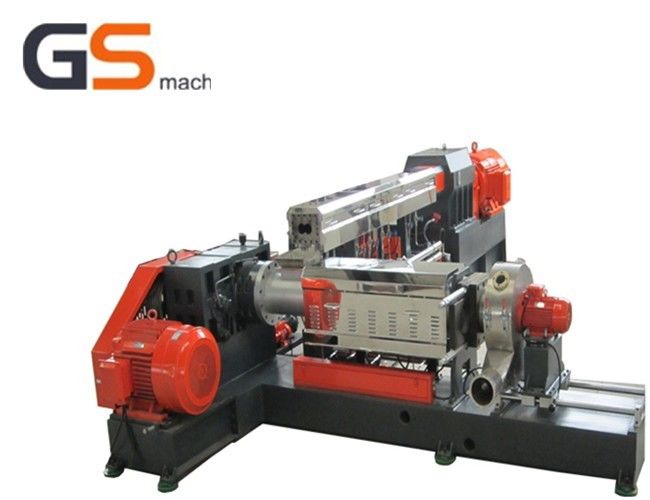

Product Picture:
