Product Details
Place of Origin: Made in Nanjing
Brand Name: GS-mach
Certification: CE ISO9001
Model Number: GSZ-100
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Cases or Pallets
Delivery Time: 30~45 days
Supply Ability: 100 sets/month
Process Material: |
All Kind Of Plastic And Rubber |
Power: |
11KW |
Model: |
Conical Twin Screw Force Feeder |
Body Material: |
45# |
Control System: |
ABB Inventor |
Heating: |
Heating Chamber |
Process Material: |
All Kind Of Plastic And Rubber |
Power: |
11KW |
Model: |
Conical Twin Screw Force Feeder |
Body Material: |
45# |
Control System: |
ABB Inventor |
Heating: |
Heating Chamber |
Kneader Conical twin screw Force Feeder Extruder connected with twin screw or single screw extruder
Conical twin screw force feeder charactor:
The variable speed regulation with the AC frequency control technology or the DC speed regulation technology is used for the extruder.
It has the welded feeding barrel of jacket type where cooling water or hot oil/hot water/steam can be lead through to control the temperature and meet the technological requirements for different kinds of stock.
The working surface of all parts in contact with stock are plated with hard chrome to resist abrasion and corrosion

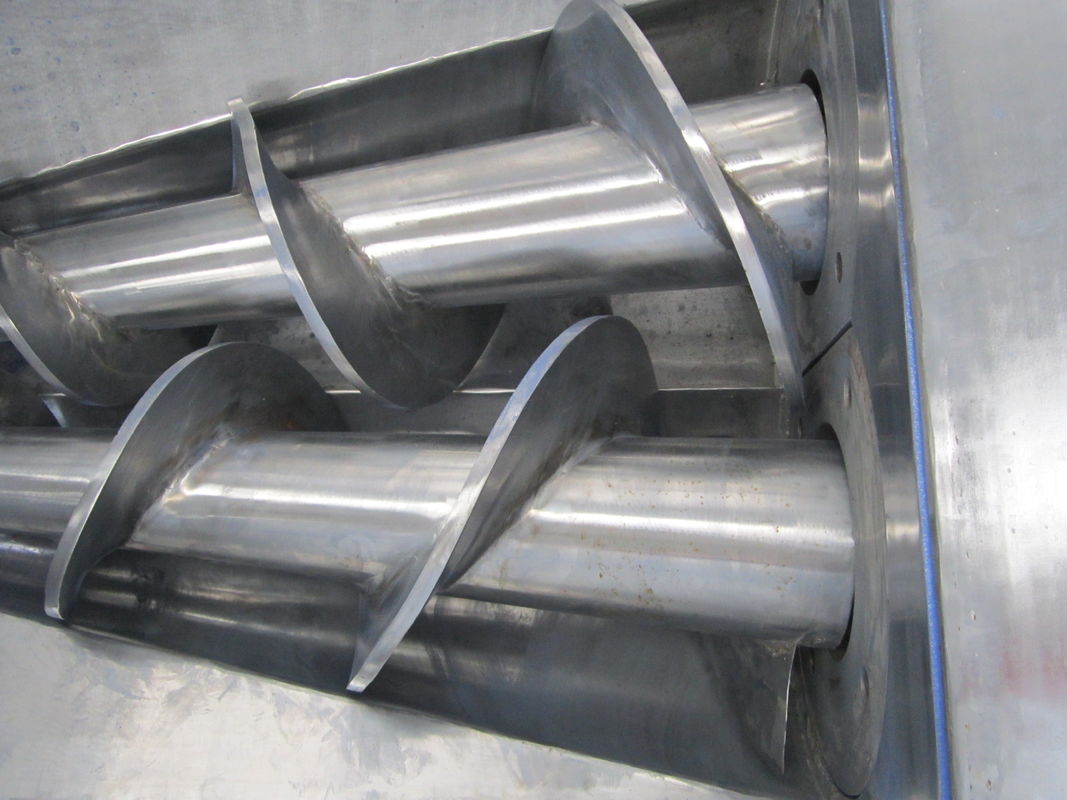

The double conical screws for feeding are of the tapered convergent type with variable pitch,which raises the extruding capacity.Meanwhile,the flat die head improves the extrusion density and planeness.
Conical twin screw force feeder Detail:
|
------- Motor power: 11kw, using "ABB" frequency Inventor -------Feeder screw: 2 PCS, twin screw force material down, Nitrogen & chroming treatment, burnished surface. -------Body : polishing treatment inner side . hard chroming treatment. -------Hopper : polishing treatment inner side . hard chroming treatment. -------Conical force feeder applying electric heating system for body. -------Feeding hole has heating system as well. |
Conical twin screw force feeder layout drawing:
