Nanjing GS-mach Extrusion Equipment Co.,Ltd Jacksong@njgsmach.com 86-25-81030382-8:00~17:00
Product Details
Place of Origin: Made in Nanjing
Brand Name: GS-mach
Certification: CE SGS
Model Number: GSJ-75/180
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden cases or pallets
Delivery Time: 45 days after payment of deposit
Supply Ability: 100 set/ month
Process Material: |
HFFR |
Power: |
360KW |
Water Temperature: |
≤38℃ |
Labor: |
1-3 People |
Kneader: |
110L |
Capacity: |
500-600 Kg/h |
Process Material: |
HFFR |
Power: |
360KW |
Water Temperature: |
≤38℃ |
Labor: |
1-3 People |
Kneader: |
110L |
Capacity: |
500-600 Kg/h |
Low Noise Twin & Single Screw Extruder Granulation Machine HFFR Production Line
HFFR production line 500 600 kg/h twin & single screw extruder granulator
Two stage extruder for plastics adopts big brand parts, highly automatic controlling system, which is easy to operate and stable quality.
This line has good mixing, dispersion and extrusion performance, which will help make top quality carbon black masterbatch.
Processing introduction
110 L kneader --bucket conveyer ---concial force feeder ---GS-75B Twin screw extruder ----GSD-180 single screw — screen changer---water ring system
Product descriptions:
Water ring cover is aluminum casting, precision machining of internal flow channel and thickness of water, the distance of cooling material is long, can effectively avoid secondary adhesion.
Application for water-ring hot face production line
1. Filling master batch: PE, EVA, etc. + caco3, talc, filling modified and carbon black etc.
2. LDPE, HDPE, LLDPE, MDPE, drivepipe, insulation material, crosslinking material, cable coating material , thermal contraction pipe material.
3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt additives.
4. Color mater batch: PE, ABS, PS, EVA master batch, etc.
5. ABS, EVA flaming retarding master batch, etc.
6. PE, PP, PS filling and biodegradable masterbatch, etc.
Main Technical Parameters:
| Kneader | Capacity | 110L |
| Output | 100-140 kg/batch | |
| Motor power | 180 kw | |
| GS-75 twin screw extruder | Main motor power | 132 kw |
| screw diameter | 71 mm | |
| Screw L/D | 36:1 | |
| GSD-180 single screw extruder | Main motor power | 75kw |
| Screw diameter | 180 mm | |
| screw L/D | 9:1 |
After-sale service & Technology support:
Pre-sales services
* Any concerns of our machine by email/phone will be replied ASAP within 24 hours
* Inquiry and consulting support
* Quick reply.
* View our factory
After-sales service
* Traning how to install the machine ,tranning how to use the machine
* Engineers are avaiable to service machinery overseas
* One year guarantee for the machine expect the spare part ,we can supply lifelong technology service to slove any problem form you .
Contact
Nanjing GS-mach Extrusion Equipment Co.,Ltd
No.12 Shanghu Industrial Park,Jiangning Street, Jiangning District,Nanjing China
Mobile Phone/ Whatsapp: +86 18851021602
Tel: 86-25-81030382-8:00~17:00
Fax: 86-25-52790852
Email: extruder5@njgsmach.com
Web: http://www.plasticpelletextruder.com

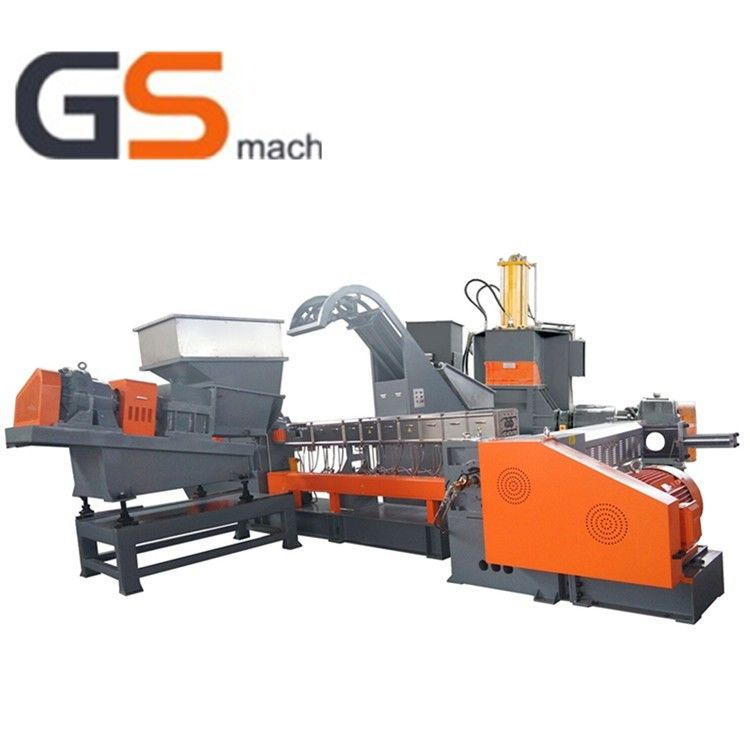

Product Picture:
