Product Details
Place of Origin: Made in China
Brand Name: GS-mach
Certification: CE ISO9001
Model Number: GS-75B
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden base plate, damp proof plastic lining, fully-closed plate-box external
Delivery Time: 45 days after payment of deposit
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 100 sets/ month
Oversea Service: |
Installation,staff Trainning |
Warranty: |
12 Months |
Supplier: |
Factory Direct |
Raw Material: |
PET Flakes |
Cutting System: |
Water Strand Cutting System |
Delivery Time: |
45 Days After Payment Of Deposit |
Oversea Service: |
Installation,staff Trainning |
Warranty: |
12 Months |
Supplier: |
Factory Direct |
Raw Material: |
PET Flakes |
Cutting System: |
Water Strand Cutting System |
Delivery Time: |
45 Days After Payment Of Deposit |

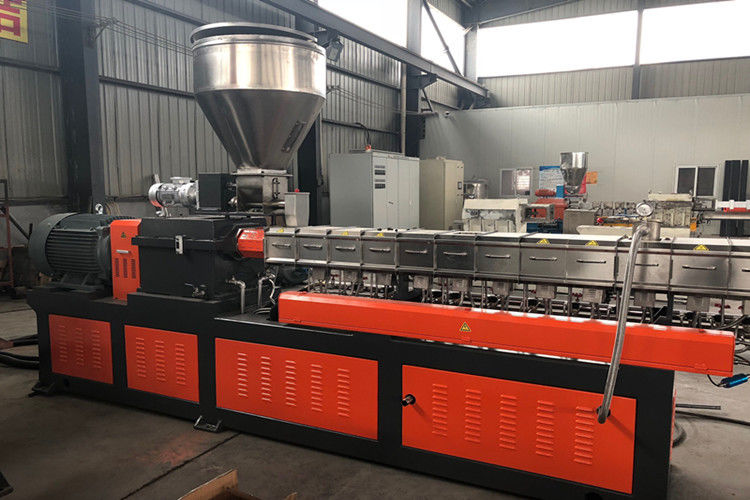

Recycle PET pelletizing machine twin screw extruder factory direct granulator
General Information
PET is a highly crystalline white or yellowish polymer with smooth and glossy surface. Resistance to creep, resistance to fatigue, abrasion resistance and dimensional stability, wear small and high hardness, the largest toughness of the thermoplastic plastics: good electrical insulation, temperature affected little, but the corona resistance is poor. Non toxic, weatherproof, anti chemical stability, low water absorption, weak acid and organic solvents, but not hot water immersion, alkali resistance.
PET resin has high glass transition temperature, slow crystallization rate, long molding cycle, long molding cycle, large molding shrinkage, poor dimensional stability, brittle molding and low heat resistance.
Twin screw extruder Models
| Model | GS-20 | GS-35 | GS-50 | GS-65 | GS-75 | GS-95 |
| Main Motor | 4 | 45-22 | 37-75 | 45-75 | 75-160 | 132-250 |
| Screw diameter | 21 | 35.6 | 50.5 | 62.4 | 71 | 93 |
| L/D | 28-40 | 28-48 | 28-64 | 28-64 | 28-64 | 28-64 |
| Rotate speed (rpm) | 0-600 | 0-600 | 0-600 | 0-600 | 0-600 | 0-600 |
| Screw Material | bi-metal | bi-metal | bi-metal | bi-metal | bi-metal | bi-metal |
Twin screw extruder adopts big brand parts, highly automatic controlling system, which is easy to operate and stable quality.
This line has good mixing, dispersion and extrusion performance, which will help make top-quality pellets.
The main components:
| Model | Machine | Quantity |
| 1 | Spiral Loader Feeder | 1 set |
| 2 | Twin screw extruder | 1 set |
| 3 | Electrical control system | 1 set |
| 4 | Water strand cutting system | 1 set |
Shipping and Packing
Filling Modification equipment double screw extruder parallel twin screw machine will be packed by wooden base plate, damp proof plastic lining, fully-closed plate-box external.
Deposit 40% by T/T in advance, delivery against payment of 60% balance after qualified acceptance.
Before leaving factory, equipment should be tested by both parties. Test material offered by buyer.
We will send 1-2 technicians for machine’s installation and debugging according to customer’s requirement; the technician’s board and lodging and the round-trip airplane ticket expense undertakes by the buyer,additional service charge USD50.For each technician/one day, estimate 5-7 working days
