Double Head Strainer Rubber Extruder Machine For Rubber Water Stop Belt

Name: Double Head Strainer Rubber Extruder Machine For Rubber Water Stop Belt
Brand: Nanjing GS-mach Extrusion Equipment Co.,Ltd
SKU: GSR90
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Made in Nanjing

Brand Name: GS-mach

Certification: CE ISO9001

Model Number: GSR90

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiation

Packaging Details: Wooden Cases

Delivery Time: 30 days

Supply Ability: 100 sets/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                rubber extrusion line, silicone rubber extrusion


Process Material:	Rubber Strainer	Application:	Filter
Voltage:	220V/380V/440V/3P	Type:	Rubber Extruder
L/D:	20:1	Cooling System:	Mold Temperature Controller

Process Material:	Rubber Strainer
Application:	Filter
Voltage:	220V/380V/440V/3P
Type:	Rubber Extruder
L/D:	20:1
Cooling System:	Mold Temperature Controller

Product Description

Rubber strainer extruding machine with Rubber Extruder machine

Application :

Filtration colloidization’s rubber material enters the calendar, assures the calendar bowl’s security the impurity filtration. The screw rod uses the special steel, and after nitriding, prolonged wear-resisting. The double die head replace is rapid, the ease of operation saves time. Is equipped with when the power failure the die head opens the installment automatically, protects the ratio station security.

The filter rubber raw material enters the rolling mill to filter away impurities such as scrap iron,stone,etc.to ensure the safety of the roller, the threshing of the screw rod promotes the uniform plasticization of the rubber, and cool preservation by water can be adopted for stablizing the process.

Features:

♦ Screw made of sapecial steel is with nitrogentreatment,durable.

♦ Jacketed type barrel can cooled for cooling the rubbers effectively.

♦ Double head strainer to be quickly & easily exchanged.

♦ Smoothly running and high ouutput.

♦ Equipped with die-head auto opeaning system when electric power is cut of.

Main technical parameter

Model	GSL-160	GSL-200	GSL-220	GSL-250	GSL-300
Screw diamete(mm)	160	200	220	250	300
(L/D)ratio	14:1	14:1	16:1 or 14:1	18:1	12:1
Max.screw speed(r/min)	60	55	44	33	26
Power of motor(kW)	75kW DC	90kW DC	110kW DC	160kW DC	220kW DC
Capacity9kg/h)	360	800-1000	1800-2000	2100-2600	2300-2800

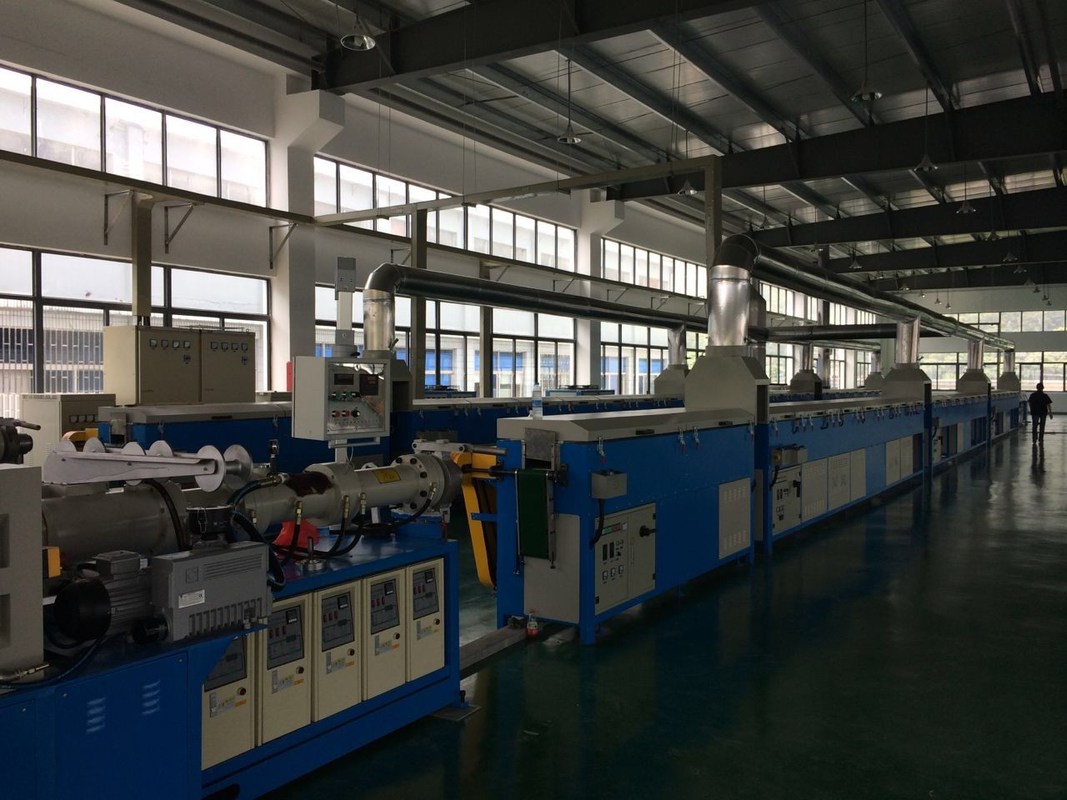

Machine Picture:
