Product Details
Place of Origin: Made in Nanjing
Brand Name: GS-mach
Certification: SGS CE
Model Number: 75L+150 single screw extruder
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden cases and pallets
Delivery Time: 30 days
Supply Ability: 1
Process Material: |
PP PE Filler Masterbatch |
Cutting System: |
Water Ring Cutting System |
Voltage: |
220V/380V/440V/ |
Type: |
75+150 Single Screw Extruder |
Weight: |
16T |
Application: |
Granules |
Process Material: |
PP PE Filler Masterbatch |
Cutting System: |
Water Ring Cutting System |
Voltage: |
220V/380V/440V/ |
Type: |
75+150 Single Screw Extruder |
Weight: |
16T |
Application: |
Granules |
Kneader+single screw extruder Rubber kneader Machine with filler masterbatch
Machine General Working Condition:
-----Power Supply
-----50/60HZ 220/380/480 V 3P OR CUSTOM POWER
-----Water Supply
-----Recycling water: water pressure:～0.45MPa
-----Water temperature:≤38℃
-----Industrial soft water(none-ion water )water temperature ≤38℃
-----Circulating water: for barrels cooling; using soft water(distilled water) to prevent scale
-----External circulating water: for cooling internal circulating water and water trough
-----Water supply suggestion: build pool 25~30m3outside of workshop and pump the water
-----Air Supply
----- 6-8 kg
-----Area
-----Flat area with space about 15.6*6*3.4m(L, W, H)
-----Conductive dust free area for electric cabinet, temperature less than 38℃
-----Labor 1-2people
General Introduction:
Compared with other solutions, we use kneader for mixing and dispersion, better mixing and dispersion performance and more importantly, dust-free. We use conical twin screw force feeder for feeding, which ensure higher output and feeding performance.
Machine Color
------Mainly white or orange, OR CUSTON COLOR
Machine Composition and Quotation
110L Kneader ------Conveyor------Conical Twin Screw Force Feeder-----GSD-180 Single Screw Extruder----Hydraulic Screen Changer-----Water-ring Pelletizing System

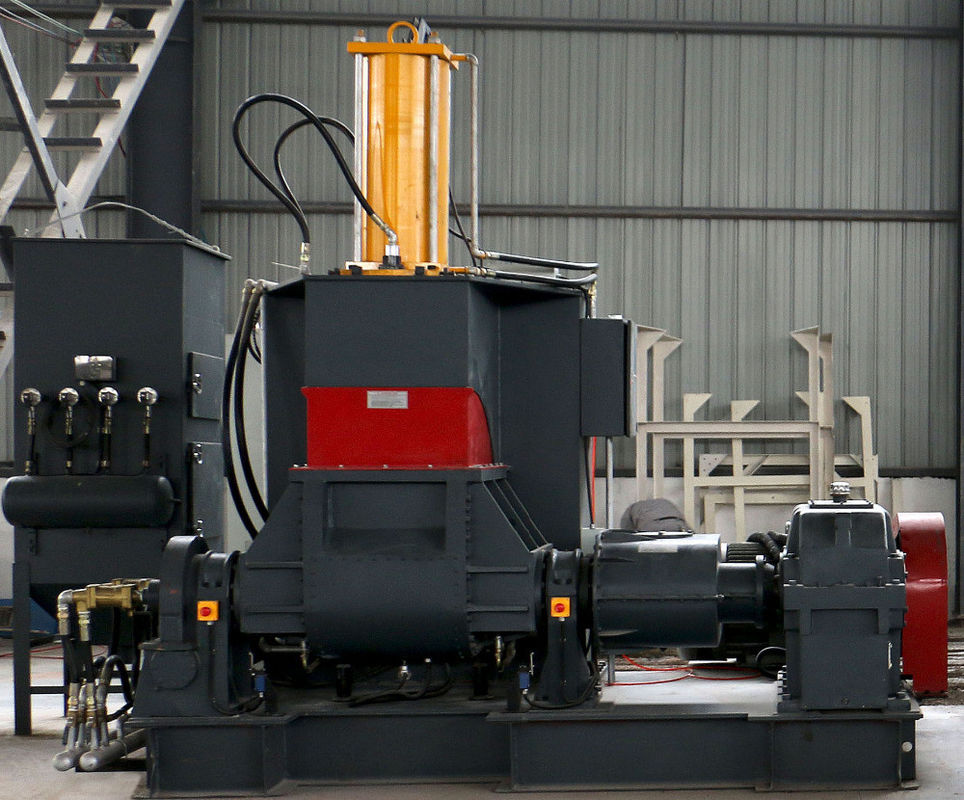

Machine Picture:
