Product Details
Place of Origin: Made in Nanjing
Brand Name: GS-mach
Certification: SGS CE
Model Number: 20L+65single screw extruder
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden cases and pallets
Delivery Time: 30 days
Supply Ability: 1
Process Material: |
Non-woven Masterbatch |
Cutting System: |
Hot Air Cutting System |
Voltage: |
220V/380V/440V/ |
Type: |
20+65 Single Screw Extruder |
Weight: |
6T |
Application: |
Granules |
Process Material: |
Non-woven Masterbatch |
Cutting System: |
Hot Air Cutting System |
Voltage: |
220V/380V/440V/ |
Type: |
20+65 Single Screw Extruder |
Weight: |
6T |
Application: |
Granules |

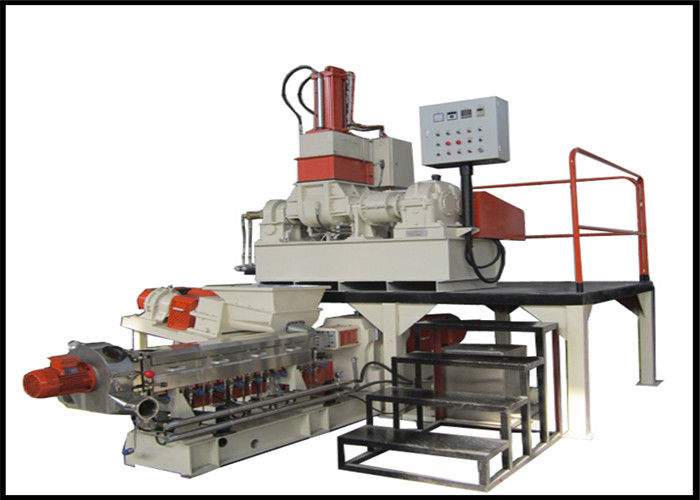

20L+65 single screw extruder Rubber kneader Machine with non-woven masterbatch
Machine Composition
| Model | Machine | Quantity |
| 1. | 55L Kneader | 1 Set |
| 2. | Conveyor | 1 Set |
| 3. | Twin Screw force feeder | 1 Set |
| 4. | 120mm Single Screw Extruder with electrical control system | 1 Set |
| 5. | Air Cooling hot cutting system | 1 Set |
Electrical Control Cabinet Introduction:
------50/60HZ 220/380/480V 3P OR CUSTOM POWER
------AC contactor: SIEMENC brand
------Main motor air switch: LG brand
------Intermediate relay:OMRON brand
------Temperature controller: OMRON brand
------Other low voltage electrical and button, switch: all use the Delixi
------Electric control cabinet include temperature control system and driving system
Air hot cutting System:
-----Die face pelletizer: power 2.2kw, "ABB" frequency converter
----cover: stainless steel, one set
----First cyclone separator : φ800m stainless steel;φ160mm stainless steel pipes; flange connector; blower 5.5kw.
----Second cyclone separator:φ800m stainless steel;φ160mm stainless steel pipes; flange connector; blower 4kw.
----screen vibrator: 2.5m,one piece, stainless steel material
----silo box:1m3; stainless steel; flange connector; blower 3kw.
Cutting System Picture:
