Product Details
Place of Origin: Made in Nanjing
Brand Name: GS-mach
Certification: CE SGS
Model Number: GS120
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden cases or pallets
Delivery Time: 30 days
Supply Ability: 100 set/ month
Process Material: |
PP Woven Bags Scraps |
Application: |
PP Woven Bags Scraps Plastic Granules |
Capacity: |
200~300kg/h |
Type: |
Single Screw Extruder |
L/D: |
32:1 |
Model: |
Granules Making Machine |
Process Material: |
PP Woven Bags Scraps |
Application: |
PP Woven Bags Scraps Plastic Granules |
Capacity: |
200~300kg/h |
Type: |
Single Screw Extruder |
L/D: |
32:1 |
Model: |
Granules Making Machine |
PP Woven Bags Scraps Plastic Granules with plastic recycling Extruder of Pellets Making Machine
Useful:
Plastic granulator is an equipment to make film material, silk material or particles into plastic particles by extruding, cooling and pelletizing.
Characteristics:
This equipment is used together with granulator. Simply processes, advanced technology, and applied to different waste plastics. It uses the electric network, automatic temperature control and the state's patented energy-saving heaters with low power consumption, non-polluting, high degree of automation.
For the use of electric network, automatic temperature control, national energy-saving patented heater, low power consumption, non-polluting, high degree of automation.
| Parameters Model | GSSJ-130/110 | GSSJ-150/130 | GSSJ-180/150 | GSSJ-210/180 | GSSJ-240/210 | GSSJ-280/240 | GSSJ-300/280 |
| Host screw diameter (mm) | 130 | 150 | 180 | 210 | 240 | 280 | 300 |
| Main machine power (kw) | 30 | 45 | 55 | 110 | 132 | 200 | 250 |
| Host screw rotate speed (r/min) | 55-60 | 50-55 | 45-50 | 40-45 | 40-45 | 40-45 | 40-45 |
| Sub screw diameter (mm) | 110 | 130 | 150 | 180 | 210 | 240 | 280 |
| Sub machine power (kw) | 11 | 15 | 18.5 | 30 | 37 | 55 | 75 |
| Changer motor power(kw) | 1.5 | 1.5 | 1.5 | 2.2 | 5.5 | 5.5 | 5.5 |
| Production capacity (kg/h) | 150 | 200 | 300 | 400 | 500 | 800 | 1000 |
| Matched pelleter power (kw) | 1.5 | 1.5 | 3 | 5.5 | 5.5 | 11 | 11 |
| 3+1PH380V50HZPC Machine installed power | 80 | 120 | 180 | 280 | 360 | 500 |
800 |

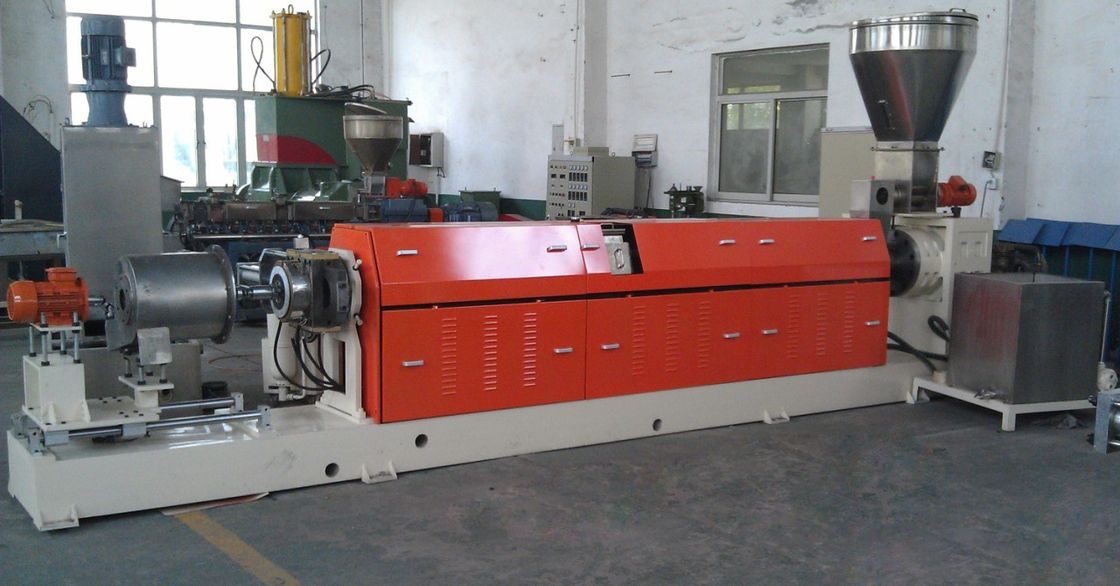

Machine Picture:
