Product Details
Place of Origin: Made in Nanjing
Brand Name: GS-mach
Certification: CE SGS
Model Number: GS120
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: wooden cases or pallets
Delivery Time: 30 days
Supply Ability: 100 set/ month
Process Material: |
PP Milk Bottle Scraps |
Application: |
PP Milk Bottle Scraps Pellet Making |
Capacity: |
400kg/h |
Type: |
Single Screw Extruder |
L/D: |
32:1 |
Model: |
Granules Making Machine |
Process Material: |
PP Milk Bottle Scraps |
Application: |
PP Milk Bottle Scraps Pellet Making |
Capacity: |
400kg/h |
Type: |
Single Screw Extruder |
L/D: |
32:1 |
Model: |
Granules Making Machine |
PP Milk Bottle Scraps Pellet Making Machine with plastic recycling extruder of 400kg/h
1. Machine Charactor:
The recycling line widely process a variety of thermoplastic plastic ,such as PP/PE/PET ect. With different capacity , it is composed of single screw extruder, hydraulic screen changer , cooling water tank, air blower and granulator cutter with material tank . it adopt lastest advanced technology, lower power consumption and reliable performance .meanwhile ,we can design the machine as customer’s requirement.
2. Technic data: (Take PE as standard)
| Model | L:D | Capacity | Screw Dia. | Rotary speed | Power | Center height |
| GS-C80 | 28:1 | 70-80kgs/h | 80mm | 10-120r/min. | 18.5kw | 700mm |
| GS-C90 | 28:1 | 90-100kgs/h | 90mm | 10-120r/min. | 22-30kw | 700mm |
| GS-C100 | 28:1 | 100-120kgs/h | 100mm | 10-120r/min. | 30kw | 750mm |
| GS-C105 | 28:1 | 130-140kgs/h | 105mm | 10-120r/min. | 30kw | 750mm |
| GS-C110 | 28:1 | 150-160kgs/h | 110mm | 10-120r/min. | 37kw | 750mm |
| GS-C120 | 28:1 | 170-200kgs/h | 120mm | 10-120r/min. | 37-45kw | 750mm |
| GS-C130 | 28:1 | 230-250kgs/h | 130mm | 10-120r/min. | 45-55kw | 800mm |
| GS-C140 | 28:1 | 260-300kgs/h | 140mm | 10-120r/min. | 55-75kw | 800mm |
| GS-C150 | 28:1 | 300-350kgs/h | 150mm | 10-120r/min. | 75kw | 800mm |
| GS-C160 | 28:1 | 450-500kgs/h | 160mm | 10-120r/min. | 90-120kw | 900mm |

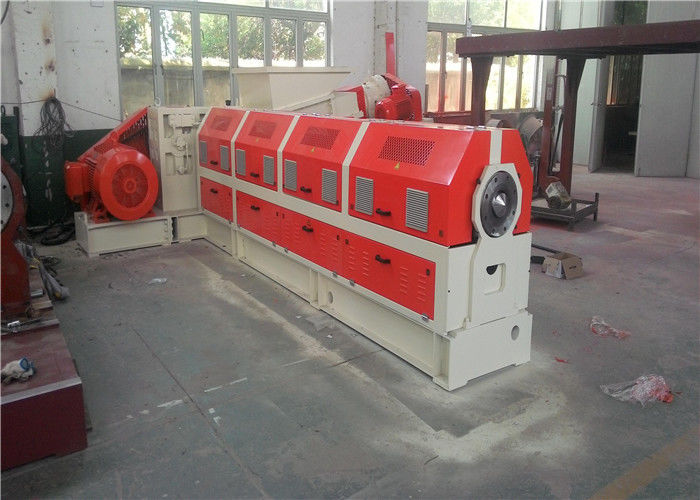

3. Machine Picture:
