Product Details
Place of Origin: Made in Nanjing
Brand Name: GS-mach
Certification: SGS CE
Model Number: 1L/3L/5L/10L/20L/35L/55L/75L/110L/150L
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden cases and pallets
Delivery Time: 30 days
Supply Ability: 1
Dimension(L*W*H): |
2100*1000*2100 |
Type: |
Rubber Kneader |
Weight: |
1t-22t |
Feeding Mode: |
Front/Back |
Temperature Control Range: |
+/-5℃ |
Tilting Angle: |
125° |
Dimension(L*W*H): |
2100*1000*2100 |
Type: |
Rubber Kneader |
Weight: |
1t-22t |
Feeding Mode: |
Front/Back |
Temperature Control Range: |
+/-5℃ |
Tilting Angle: |
125° |
High Quality Kneader Internal Mixer Rubber Plastic Banbury Machine on sale
This equipment possesses temperature and time control system for easy but accurate operation and best decentralization. Tilt-able mixing chamber and mechanical shaft sealing design for easy cleaning and color changing. Pressure sealed mixing chamber to assure the quality of mixed material and also prevent environment pollution. The mixing chamber is made of high grade alloy steel and the work surface is hard chrome coated for supper anti-abrasion.
Models
| Model | 10 L | 20L | 35L | 55L | 75L | 110L |
| Mixing Capacity | 10L | 20L | 35L | 55L | 75L | 110L |
| Produce Weight (once) | About 8-15 kg/unit | about 15-25kg/unit | about 26-45kg/unit | about 45-75kg/unit | about 60-85kg/unit | about 100-140kg/unit |
| Batch time |
about 4-7times/ hour |
about 4-7times/hour | about 4-7times/hour | about 4-7times/hour | about 4-7times/hour | about 4-7times/hour |
| Driving Motor | 15kw-6P | 30kw-6P | 55kw-6P | 75kw-6P | 110kw-6P | 160kw-6P |
| Tilting Angle | 125° | 125° | 125° | 125° | 125° | 125° |
| Weight(KG) | 2300kg | 4000kg | 6500kg | 8500kg | 10500kg | 14000kg |
| Feeding Mode | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back | Front/Back |
| Temperature control range | +/-5℃ | +/-5℃ | +/-5℃ | +/-5℃ | +/-5℃ | +/-5℃ |
After-sale service
Warranty: 1 year
Payment term: 40% down payment by T/T contract become effect, 60% balance by T/T before Delivery Time: 45 days after the contract effect.
Machine Composition and Quotation
Kneader ------Conveyor------Conical Twin Screw Force Feeder----- Single Screw Extruder----Hydraulic Screen Changer-----Water-ring Pelletizing System
Contact
Nanjing GS-mach Extrusion Equipment Co.,Ltd
No.12 Shanghu Industrial Park,Jiangning Street, Jiangning District,Nanjing China
Mobile Phone/whatsapp: +86 18851021602
Tel: 86-25-81030382-8:00~17:00
Fax: 86-25-52790852
Email: extruder5@njgsmach.com

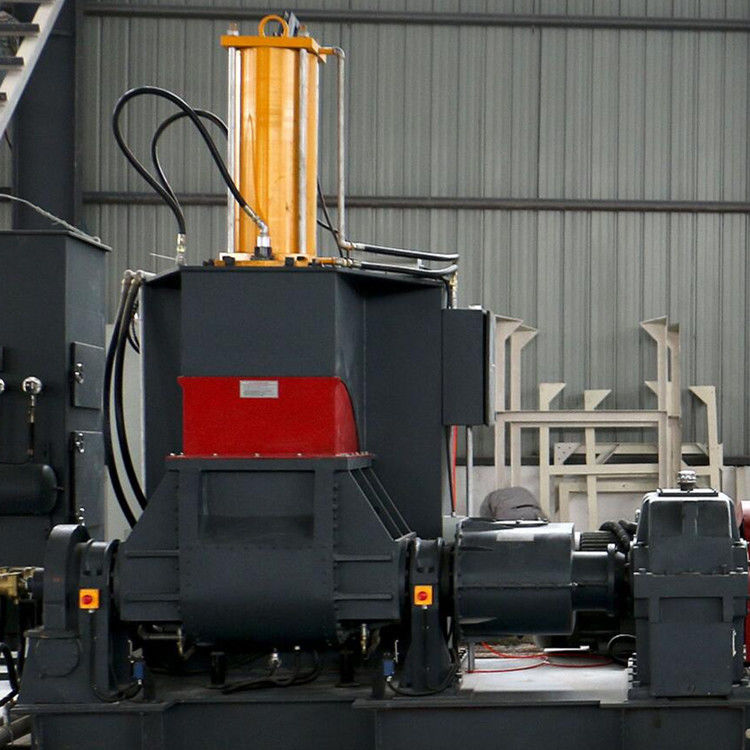

Machine Picture:
