Product Details
Place of Origin: Made in Nanjing
Brand Name: GS-mach
Certification: CE SGS
Model Number: GSJ-65/150
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden base plate, damp proof plastic lining, fully-closed plate-box external
Delivery Time: 45 days after payment of deposit
Supply Ability: 100 set/ month
Process Material: |
PVC Cable Material |
Pelletizing System: |
Air Cooling Hot Cutting System |
Twin Screw Diameter: |
65 Mm |
Single Screw Diameter: |
150 Mm |
Mixer: |
110L Kneader |
Capacity: |
500-600 Kg/h |
Process Material: |
PVC Cable Material |
Pelletizing System: |
Air Cooling Hot Cutting System |
Twin Screw Diameter: |
65 Mm |
Single Screw Diameter: |
150 Mm |
Mixer: |
110L Kneader |
Capacity: |
500-600 Kg/h |
Mixer PVC pelletizing machine plastic granules granulator Air cooling
The mold of the plastic granulator is divided into manual and electric. The granulator needs to change the net regularly to remove the impurities. The extrusion die is generally 18 holes. The pressure of the extruder is very high after the filter network is blocked, and the electric mold can be used, saving time and labor.
Functional use
Using special screw design and different configuration, it is suitable for the production of PP, PE, PS, ABS, PA, PVC, PC, POM, EVA, LCP, PET, PMMA and other kinds of plastic regeneration and color mixing granulation.
Plastic granulator is mainly used to process waste plastic film (industrial packaging film, agriculturalfilm film, shed film, beer bag, hand bag, etc.), woven bag, agricultural convenience bag, basin, bucket, beverage bottle, furniture, daily necessities and so on. It is suitable for common waste plastics. It is widely used and widely used in the waste plastic recycling industry. The plastic reprocessing machine is popular by the users.
Characteristic
1. All recyclable materials can be produced after classification and crushing and washing without drying or drying and drying.
2, from raw material crushing, cleaning, feeding to make granules are automatic.
3, make full use ofhigh pressure friction continuous heating system, automatic heating production, avoid continuous heating, save electricity and energy saving.
4, adopt the split automatic distribution system to ensure the safe and normal operation of the motor.
5. The screw barrel is made of imported high strength andhigh quality carbon structural steel, which is durable.
6, the appearance of the machine is beautiful and generous. The paint can be painted according to the requirements of the customer.
Machine introduction
| Model | Machine | Quantity |
| 1 | 110L Kneader | 1 set |
| 2 | Spiral feeder | 1 set |
| 3 | Twin screw metering feeder | 1 set |
| 4 | GS-65 twin screw extruder | 1 set |
| 5 | Connector | 1 set |
| 6 | GSD-150 single screw extruder | 1 set |
| 7 | hydraulic plate automatic screen changer | 1 set |
| 8 | Air cooling hot cutting system | 1 set |
Main Technical Parameters:
| Kneader | Capacity | 110L |
| Output | 100-140 kg/batch | |
| Motor power | 180 kw | |
| GS-75 twin screw extruder | Main motor power | 132 kw |
| screw diameter | 71 mm | |
| Screw L/D | 36:1 | |
| GSD-180 single screw extruder | Main motor power | 75kw |
| Screw diameter | 180 mm | |
| screw L/D | 9:1 |
After-sale service & Technical support:
Pre-sales services
* Any concerns of our machine by email/phone will be replied ASAP within 24 hours
* Inquiry and consulting support
* Quick reply.
* View our factory
After-sales service
* Traning how to install the machine, training how to use the machine
* Engineers are available to service machinery overseas
* One year guarantee for the machine expect the spare part, we can supply lifelong technology service to solve any problem form you.
Contact
Nanjing GS-mach Extrusion Equipment Co., Ltd
No.12 Shanghu Industrial Park,Jiangning Street, Jiangning District, Nanjing China
Mobile Phone/ Whatsapp: +86 18851021602
Tel: 86-25-81030382-8:00~17:00
Fax: 86-25-52790852
Email: extruder5@njgsmach.com
Web: http://www.plasticpelletextruder.com

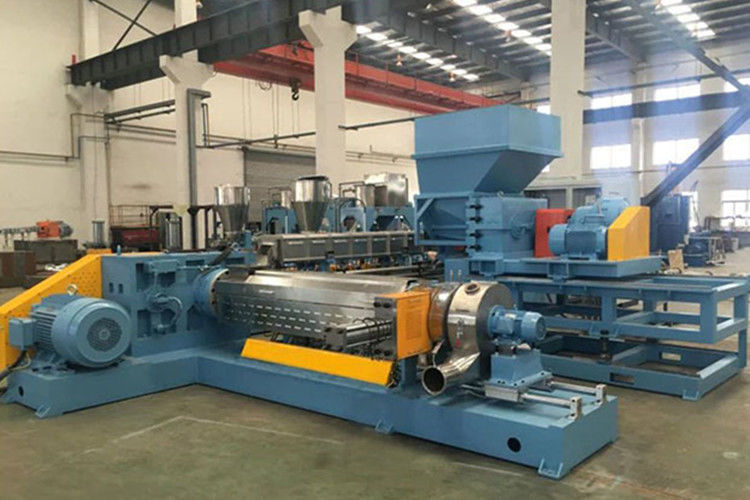

Product Picture:
