Product Details
Place of Origin: Made in China
Brand Name: GS-mach
Certification: CE ISO9001
Model Number: GS-75B
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden base plate, damp proof plastic lining, fully-closed plate-box external
Delivery Time: 45 days after payment of deposit
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 100 sets/ month
Oversea Service: |
Installation,staff Trainning |
Warranty: |
12 Months |
Delivery: |
45 Days |
Raw Material: |
PET Flakes |
Cutting System: |
Water Strand Cutting System |
Delivery Time: |
45 Days After Payment Of Deposit |
Oversea Service: |
Installation,staff Trainning |
Warranty: |
12 Months |
Delivery: |
45 Days |
Raw Material: |
PET Flakes |
Cutting System: |
Water Strand Cutting System |
Delivery Time: |
45 Days After Payment Of Deposit |

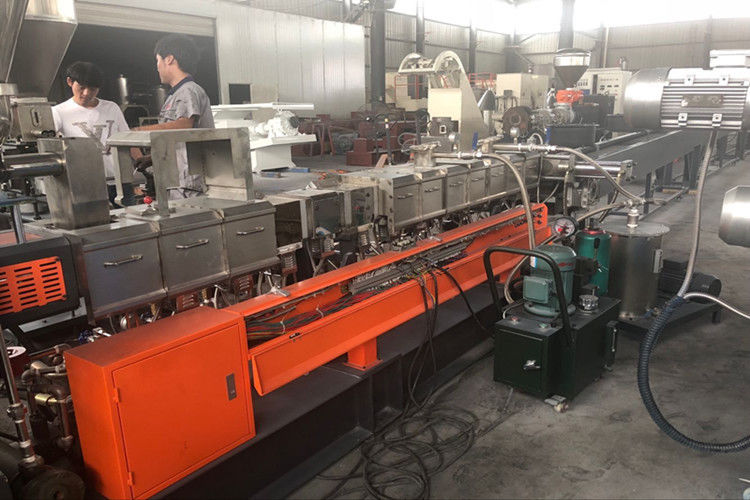

Recycled plastic granules PET Pelletizing machine recycling extrusion line
General Information
After pretreatment, the PET fragments were then heated and dried at higher temperatures to remove residual moisture. For example, drying more than 6 hours in a drying box at 150 degrees C, the water content in the debris is less than 0.05%, in order to avoid the rapid hydrolysis of PET during the subsequent extrusion granulation, which leads to a sharp decline in molecular weight and a sharp drop in viscosity.
Innovated design of heater tightened style insures high efficiency of heat transfer.
New-style gear transmission system:
1.New-style project of parallel three-axises driving makes the convey axis.
2.The key bearings are imported from WorldTop brand.
3.The compact design to optimize gear parameters and strengthen safe overmeasure.
4.Technics,strengthening of tooth face, ensure high torque,high precision and low noise
5. Sprayinglubriation in drive comp dainty.
Twin screw extruder Models
| Model | GS-20 | GS-35 | GS-50 | GS-65 | GS-75 | GS-95 |
| Main Motor | 4 | 45-22 | 37-75 | 45-75 | 75-160 | 132-250 |
| Screw diameter | 21 | 35.6 | 50.5 | 62.4 | 71 | 93 |
| L/D | 28-40 | 28-48 | 28-64 | 28-64 | 28-64 | 28-64 |
| Rotate speed (rpm) | 0-600 | 0-600 | 0-600 | 0-600 | 0-600 | 0-600 |
| Screw Material | bi-metal | bi-metal | bi-metal | bi-metal | bi-metal | bi-metal |
Twin screw extruder adopts big brand parts, highly automatic controlling system, which is easy to operate and stable quality.
This line has good mixing, dispersion and extrusion performance, which will help make top-quality pellets.
The main components usually include:
Spiral Load feeder —— Twin screw extruder——Electrical Control System ——Water Strand Auxiliary System
Service
------Packing type: Wooden base plate,damp proof plastic lining,fully-closed plate-box external
------Leave factory testing: before leaving factory,equipment should be tested by both parties.Test material offered by buyer
------Installation: we will send 1-2 technicians for machine’s installation and debugging according to customer’s requirement;the technician’s board and lodging and the round-trip airplane ticket expense undertakes by the buyer,additional service charge USD50.For each technician/one day,estimate 5-7 working days
------Guarantee period: Guarantee period is 12 months after leaving factory,damaged
------The supplier shall provide the service:(after pay the machine)
------the supplier to send adjustment of installation and commissioning
------the supplier direct buyer's technical personnel operating the machine
------The buyer shall provide the facilities and preparations:(Delivery machine to finish)
------foundation and adapter power supply water and compressed air pipe and related projects
------other interface equipment not listed above
------trial use of the raw material and product testing, inspection
