400 500 kg/h Recycling PET Pelletizing Machine PET Bottle Flakes Granulator
General Information
After pretreatment, the PET fragments were then heated and dried at higher temperatures to remove residual moisture. For example, drying more than 6 hours in a drying box at 150 degrees C, the water content in the debris is less than 0.05%, in order to avoid the rapid hydrolysis of PET during the subsequent extrusion granulation, which leads to a sharp decline in molecular weight and a sharp drop in viscosity.

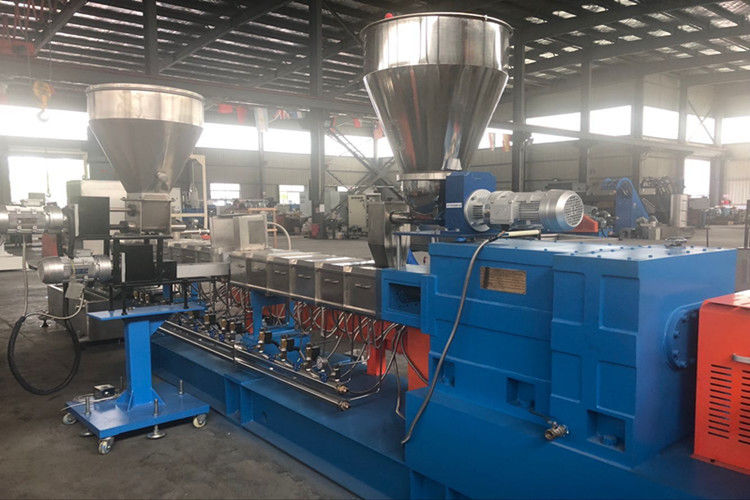

This pet flakes pelletizing line uses GS series parallel twin screw extruder, is suitable for producing PET granules from clean PET flakes.This machine is composed by GS parallel twin screw extruder, die, hydraulic screen exchanger,plastic strand die head, water cooling tank, cutter, silo.
This machine is mainly used in PET, PVC and other high viscosity materials. with good performance, high output, less power consumption cost per kilogram, and easy operation.
Twin screw extruder Models
| Model | GS-20 | GS-35 | GS-50 | GS-65 | GS-75 | GS-95 |
| Main Motor | 4 | 45-22 | 37-75 | 45-75 | 75-160 | 132-250 |
| Screw diameter | 21 | 35.6 | 50.5 | 62.4 | 71 | 93 |
| L/D | 28-40 | 28-48 | 28-64 | 28-64 | 28-64 | 28-64 |
| Rotate speed (rpm) | 0-600 | 0-600 | 0-600 | 0-600 | 0-600 | 0-600 |
| Screw Material | bi-metal | bi-metal | bi-metal | bi-metal | bi-metal | bi-metal |
Twin screw extruder adopts big brand parts, highly automatic controlling system, which is easy to operate and stable quality.
This line has good mixing, dispersion and extrusion performance, which will help make top-quality pellets.
The main components usually include:
Spiral Load feeder —— Twin screw extruder——Electrical Control System ——Water Strand Auxiliary System
Service
------Packing type: Wooden base plate,damp proof plastic lining,fully-closed plate-box external
------Leave factory testing: before leaving factory,equipment should be tested by both parties.Test material offered by buyer
------Installation: we will send 1-2 technicians for machine’s installation and debugging according to customer’s requirement;the technician’s board and lodging and the round-trip airplane ticket expense undertakes by the buyer,additional service charge USD50.For each technician/one day,estimate 5-7 working days
------Guarantee period: Guarantee period is 12 months after leaving factory,damaged
------The supplier shall provide the service:(after pay the machine)
------the supplier to send adjustment of installation and commissioning
------the supplier direct buyer's technical personnel operating the machine
------The buyer shall provide the facilities and preparations:(Delivery machine to finish)
------foundation and adapter power supply water and compressed air pipe and related projects
------other interface equipment not listed above
------trial use of the raw material and product testing, inspection
